LG 580. 75184 500 WINDOW HEAT & COOL Parts List

35211A

TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20204C Contact Us For Availability

View on Model

130410

BASE ASSEMBLY,SINGLE LGE 3041A30002Y Contact Us For Availability

View on Model

130910

CABINET ASSEMBLY,SINGLE LGE 3091AR6057S Contact Us For Availability

View on Model

135301

GRILLE,FRONT LGE 3530AR1182A Contact Us For Availability

View on Model

135303

GRILLE,INLET LGE 3530AR1531A Contact Us For Availability

View on Model

135500

3550AR6173A LG Cover Backorder LGE 3550AR6173A $15.11

View on Model

135500

3550U-L002C LG Terminal Cover Backorder LGE 3550U-L002C $8.52

View on Model

135510

COVER ASSY,CONTROL(SINGLE) LGE 3551A30015A Contact Us For Availability

View on Model

137215

PANEL ASSEMBLY,CONTROL LGE 3721A20058K Contact Us For Availability

View on Model

145200

4520AR4339A LG Air Conditioner Cam Backorder LGE 4520AR4339A $3.64

View on Model

145200

4520AR4386A LG Link Backorder LGE 4520AR4386A $3.64

View on Model

146812

2H01102A LG Air Conditioner Synchronous AC Mo Backorder LGE 2H01102A $19.35

View on Model

147581

VANE,HORIZONTAL LGE 5990AR2972C Contact Us For Availability

View on Model

147900

4790AR1558A LG Single Barrier Backorder LGE 4790AR1558A $37.13

View on Model

148000

4800AR7272A LG Air Conditioner Support Bracke Backorder LGE 4800AR7272A $11.65

View on Model

149410

KNOB ASSY LGE 4941AR7134C Contact Us For Availability

View on Model

149980

SHROUD LGE 4998AR1597A Contact Us For Availability

View on Model

152312

FILTER(MECH) LGE 5230AR1327A Contact Us For Availability

View on Model

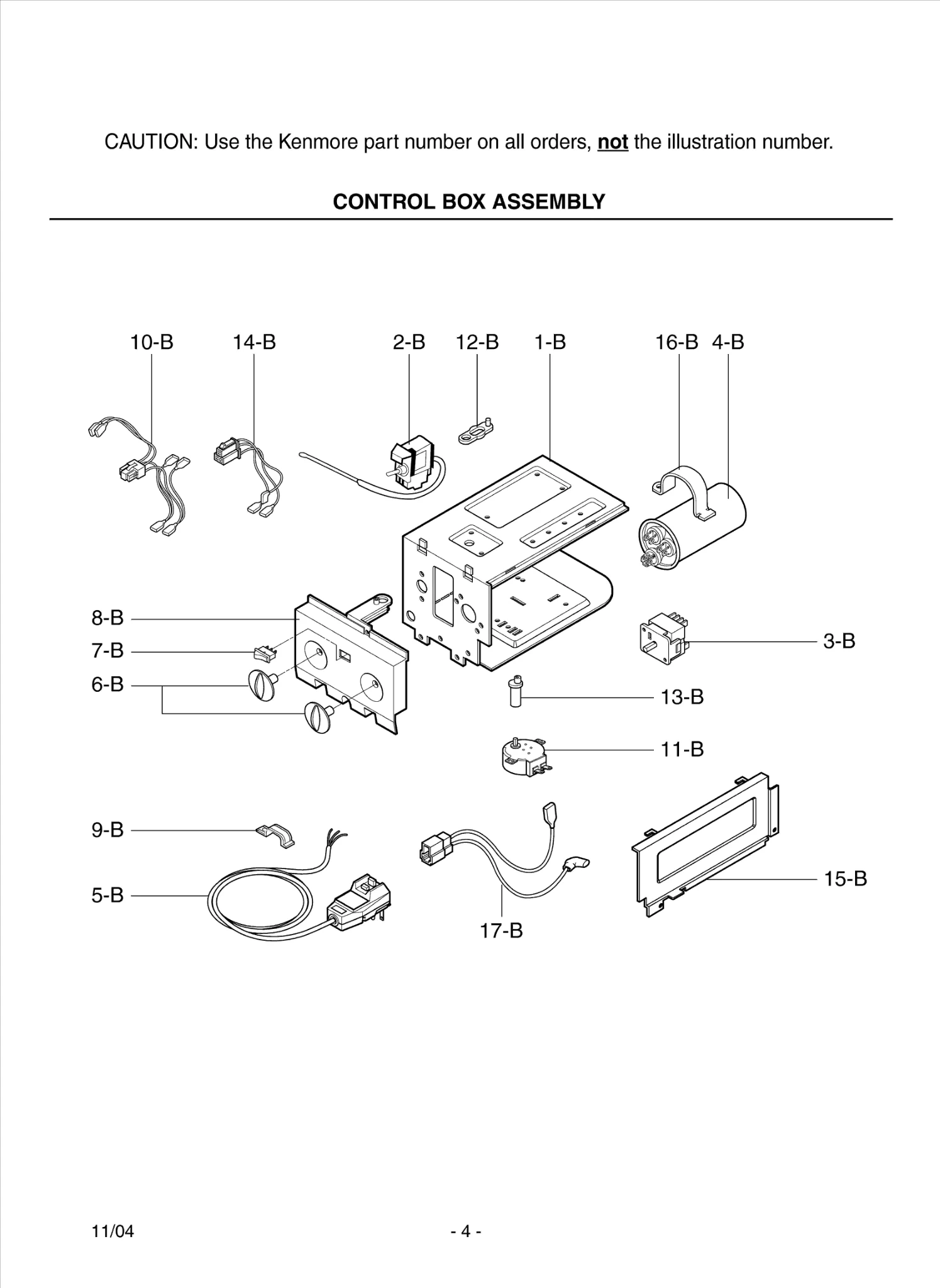

249940

CONTROL BOX LGE 4994AR1587A Contact Us For Availability

View on Model

264110

POWER CORD ASSEMBLY LGE 6411A20048L Contact Us For Availability

View on Model

266002

SWITCH,ROCKER LGE 2H01316C Contact Us For Availability

View on Model

266003

2H00598F LG Rotary Switch Backorder LGE 2H00598F $30.97

View on Model

269310

THERMOSTAT LGE 2H01127B Contact Us For Availability

View on Model

330720

SCROLL LGE 3072AR1583A Contact Us For Availability

View on Model

336610

3661AR6149C LG Multi Harness Backorder LGE 3661AR6149C $15.11

View on Model

336610

HOUSING ASSEMBLY (MECH) LGE 3661A20014B Contact Us For Availability

View on Model

346811

MOTOR ASSY,AC LGE 4681AR6033K Contact Us For Availability

View on Model

349001

4900AR7265A LG Air Conditioner Vent Damper Backorder LGE 4900AR7265A $74.27

View on Model

349600

MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability

View on Model

352111

5211AR7059A LG Connector Tube Assembly Backorder LGE 5211AR7059A $8.52

View on Model

352113

TUBE ASSY,DISCHARGE LGE 5211A30066A Contact Us For Availability

View on Model

352115

TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20434B Contact Us For Availability

View on Model

352115

TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20433B Contact Us For Availability

View on Model

352380

GUIDE,AIR Backorder LGE 5238AR1584B $104.16

View on Model

354210

EVAPORATOR ASSEMBLY,FIRST LGE 5421A20059F Contact Us For Availability

View on Model

359011

FAN LGE 5900AR1508A Contact Us For Availability

View on Model

359012

5834AR1599B LG Blower Fan Assembly Backorder LGE 5834AR1599B $41.85

View on Model

422100

3H02773A LG Air Conditioner Drain Pipe Backorder LGE 3H02773A $3.64

View on Model

435300

GRILLE,REAR LGE 3530A20042F Contact Us For Availability

View on Model

550140

BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability

View on Model

552102

TUBE ASSY,CAPILLARY LGE 5211A20020P Contact Us For Availability

View on Model

554030

CONDENSER ASSY,BEND LGE 5403A20004F Contact Us For Availability

View on Model

554160

2520UMBK2XA LG Compressor Set Backorder LGE 2520UMBK2XA $525.84

View on Model

648600

CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability

View on Model

738501

LABEL,ENERGY LGE 3850A20875N Contact Us For Availability

View on Model

749590

4959AR3402E LG Curtain Assembly Backorder LGE 4959AR3402E $74.27

View on Model

749590

CURTAIN ASSY LGE 4959AR3402F Contact Us For Availability

View on Model

749740

GUIDE,UPPER LGE 2H00858E Contact Us For Availability

View on Model

753010

5300A20003V LG Air Conditioner Electric Heate In Stock LGE 5300A20003V $129.18

View on Model

W0CZZ

CAPACITOR LGE 6120AR2359E Contact Us For Availability

View on Model

W1BZZ

4H01483A LG Bolt,Common Backorder LGE 4H01483A $74.27

View on Model

W1NHA

1NHA0801206 LG Nut Common Backorder LGE 1NHA0801206 $3.64

View on Model

W1NZZ

4H00947A LG Air Conditioner Common Nut Backorder LGE 4H00947A $3.64

View on Model

W1NZZ

NUT,COMMON Backorder LGE 4H01516A $3.64

View on Model

W1NZZ

GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability

View on Model

W1SZZ

M-SCREW INCLD IN 3H01024B/3H0 LGE 4H01482A Contact Us For Availability

View on Model

W1WZZ

4H01029F LG Washer Common Backorder LGE 4H01029F $3.64

View on Model

W4810

4H01785B LG Bracket Backorder LGE 4H01785B $3.64

View on Model

W4810

SILL BRACKET PIGEON GRAY GA-12 LGE 3H01395C Contact Us For Availability

View on Model

W4811

4H01811C LG Bracket Backorder LGE 4H01811C $3.64

View on Model

W4986

GASKET LGE 4986U-L001D Contact Us For Availability

View on Model

W6631

6631AR3388G LG Multi Harness Backorder LGE 6631AR3388G $15.11

View on Model

W6631

LEAD WIRE ASSY LGE 6877A20002B Contact Us For Availability

View on Model

W6631

LEAD WIRE ASSY LGE 6877A20002A Contact Us For Availability

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B $3.64

View on Model

W48603

CLAMP,CORD LGE 4860AR4166A Contact Us For Availability

View on Model

W49800

SUPPORT BRACKET GA-1834FC PIGE LGE 3H01479D Contact Us For Availability

View on Model

W50400

CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability

View on Model

W52120

PIPE ELBOW GA-1834FC/1835FC/21 LGE 4H00261A Contact Us For Availability

View on Model

W52206

5220A30006A LG Drain Valve Backorder LGE 5220A30006A $48.13

View on Model

W54100

INSULATION,PU LGE 3040AR6160A Contact Us For Availability

View on Model
